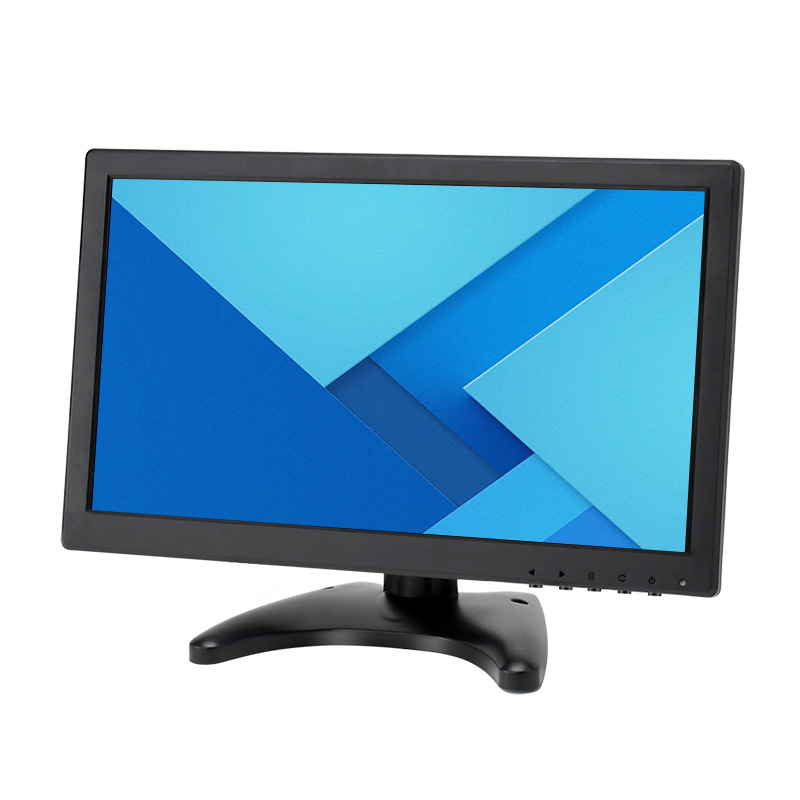

The OHM-1330W is a rugged, versatile 13.3-inch widescreen HDMI LCD monitor built for a wide range of industrial, commercial, and embedded applications. With support for both 1366×768 and 1920×1080 (Full HD) resolutions, wide viewing angles (up to 178°), and multiple input interfaces (HDMI, VGA, AV, BNC, USB), this monitor delivers reliable, crystal-clear visuals — whether you're using it for CCTV systems, POS terminals, vehicle dashboards, embedded systems or general-purpose PC display. Its compact size, narrow-bezel design, and durable build make it ideal for tight installations where space, flexibility, and reliability matter.
Item No :
OHM-1330WResolution :
1366x768 or 1920x1080 optionalViewing angle :
160°/160°(178°/178°for 1920x1080)Brightness :
250-300cd/m2 (350cd/m2 for 1920x1080)Interface :
HDMI/VGA/AV/BNC/USB readerWorking Temperature :
-10℃~ 60℃
Product Features
|
〖13.3 inch Widescreen Monitor〗 Oscan 1366x768 Resolution Supported Monitor with a resolution of 1366x768 and 1920x1080 optional. The high resolution provides a clear and vivid display, making it ideal for use in applications such as medical imaging, quality control, and data visualization.
|
![]() |
![]() |

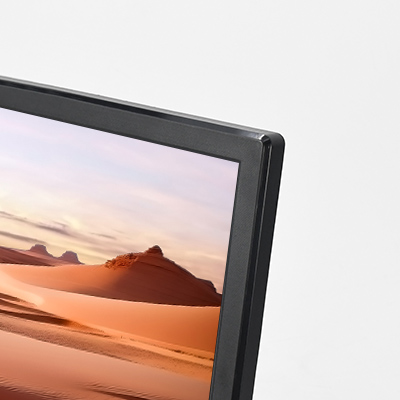

〖Ultra-thin & narrow border design〗 With its unparalleled ultra-thin profile, Oscan 13.3 Inch 1366x768 Resolution LCD Monitor is the perfect choice for those tight spaces that require a sleek and streamlined appearance. Our narrow border design not only adds to its aesthetic appeal, but also maximizes screen space for all your visual needs such as medical imaging, graphic design or gaming.
|
|

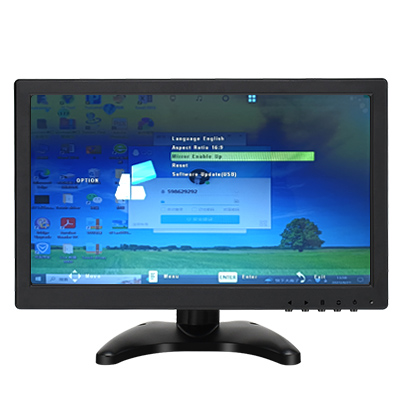

〖Mirror display feature optional〗 Oscan 13.3'' inch led monitor 12v industrial is designed with versatile and flexible video settings that include a mirror display feature optional, allowing images to be displayed as mirror images.
|
![]() |
![]() |
〖Different Devices Support〗 Oscy 13.3 Inch 1366x768 Resolution LCD Monitor is a versatile device that can be used in a multitude of fields such as surveillance, multimedia display, POS display, desktop extension, PC Computer, hobbyist activities, and industrial use.
|
Flexible Resolution — HD or Full HD: Choose between 1366×768 and 1920×1080 depending on your needs. Full HD option provides sharper images and higher contrast, ideal for video surveillance, graphic display, or detailed data visualization.
Wide Viewing Angle & Consistent Brightness: Up to 178° viewing angle ensures clear, distortion-free images from off-center positions; brightness ranges from 250–300 cd/m² (standard) to 350 cd/m² (Full HD option), ensuring visibility even under varied ambient lighting.

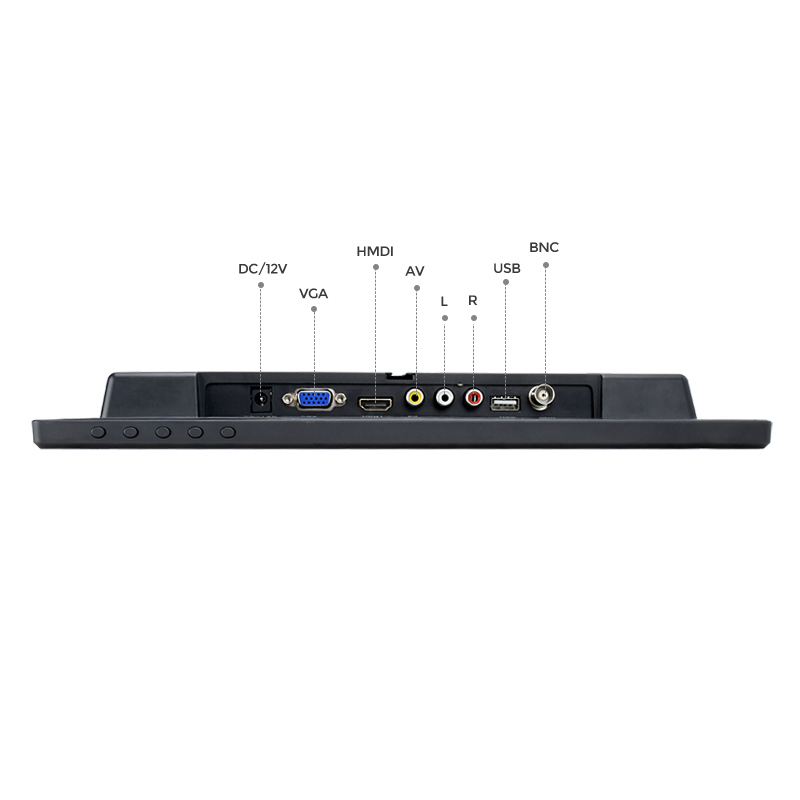

Multi-Interface Connectivity: Supports HDMI, VGA, AV, BNC, and USB — making the monitor compatible with PCs, industrial controllers, CCTV/DVR systems, POS machines, embedded systems, and more.
Compact, Slim & Space-Saving: At 13.3″ with narrow bezels, the OHM-1330W is ideal for installations with limited space while maximizing visible screen area.
Industrial-Grade Durability: Designed to operate across a broad temperature range (–10 ℃ to 60 ℃), ensuring stable performance even in harsh or demanding environments. Suitable for continuous operation in industrial, vehicular, or outdoor-adjacent settings.
Built-in Speaker & Multi-Language Support: Integrated speaker adds audio capability for multimedia or alert applications. Support for up to 11 languages makes the monitor ready for global deployment.

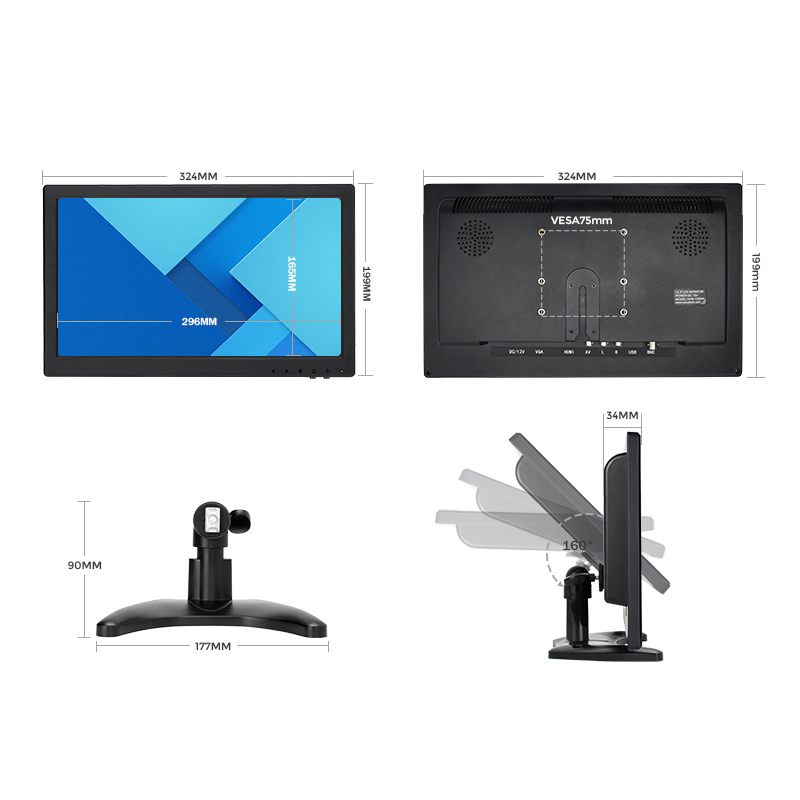

VESA Mount Compatible: 75×75 mm VESA mount allows flexible mounting options — rack installation, embedded panels, vehicles, control rooms, kiosks, or custom enclosures.
Parameters
| OHM-1330W 13.3 inch HDMI LCD Monitor for Gaming | |
| Size | 13.3 inch |
| Ratio | 16:9 |
| Resolution | 1366x768 or 1920x1080 optional |
| Brightness | 250-300cd/m2 (350cd/m2 for 1920x1080) |
| Contrast ratio | 500:1 (1000:1 for 1920x1080) |
| Color System | PAL NTSC |
| Viewing Angle | 160°/160°(178°/178°for 1920x1080) |
| Monitor interface | HDMI/VGA/AV/BNC/USB reader |
| Backlight | LED |
| Working Temperature | -10℃~ 60℃ |
| Speaker | Built in |
| Language | 11 languages |
| Power | DC12V 1-2A |
| VESA mount | 75*75mm |
Application Scenarios
Oscan 13.3" 1920x1080 HDMI monitor is a versatile device that can be used in a multitude of fields such as surveillance, multimedia display, POS display, desktop extension, PC Computer, hobbyist activities, and industrial use.

The OHM-1330W is designed for a variety of professional and industrial scenarios, including but not limited to:
Video surveillance / CCTV monitor
Security control rooms & DVR monitoring
Point-of-Sale (POS) terminals & kiosks
Embedded systems & industrial controllers
Vehicle dashboards (e.g., buses, trucks, construction equipment)
Automation panels & HMI displays
Desktop extension / second screen for PCs
Multimedia display / signage / digital info boards
Testing & quality control stations
Hobbyist and DIY projects requiring a compact monitor
OEM/ODM Expertise: Oscan specializes in industrial-grade display solutions, offering OEM/ODM services tailored to unique project needs — from custom firmware and interface configurations to rugged housings and integration-ready designs.
Consistent Quality & Reliability: Our monitors are built to withstand demanding industrial environments, with extended operating temperature range and robust components, reducing downtime and maintenance costs.
Global Support & Multilingual Interface: With support for multiple languages and international input standards, our products are ready for deployment worldwide, easing integration for multinational clients or diversified deployments.
Flexible Customization: For volume orders or specialized requirements (e.g., custom enclosures, mounting options, interface tweaks, firmware, branding), we work closely with clients to deliver tailored solutions — ideal for integrators, system builders, and control-system OEMs.
Responsive Service & Communication: Our team is available to respond quickly to inquiries, provide quotes, and assist clients — ensuring a smooth procurement process even for bulk or project-based orders.
Q: What resolutions does the OHM-1330W support?
A: The monitor supports 1366×768 as standard, with 1920×1080 (Full HD) offered as an optional configuration.
Q: What input interfaces are available?
A: OHM-1330W supports HDMI, VGA, AV, BNC, and USB reader — giving you flexibility to connect PCs, DVRs, embedded systems, POS terminals, and more.
Q: Can the monitor be mounted on a wall or enclosure?
A: Yes — it supports a 75×75 mm VESA mount, enabling wall-mounting, panel-mounting, enclosure integration, or custom rack installations depending on your project needs.
Q: What environmental conditions can it handle?
A: The monitor is designed to operate reliably across –10 ℃ to 60 ℃, making it suitable for industrial, vehicular, or outdoor-adjacent environments.
Q: Is there built-in audio capability?
A: Yes — the OHM-1330W includes a built-in speaker, suitable for alert systems, multimedia playback, or any application requiring basic audio output.
Q: Can you offer custom or bulk orders (OEM/ODM)?
A: Yes — Oscan provides OEM/ODM services. We can work with you to customize enclosures, firmware, interface configurations, branding, and more to meet your project specifications.
Q: What support or service do you offer after purchase?
A: We provide full pre-sale consultation, post-sale technical support, and assistance with custom orders. For bulk or OEM/ODM clients, we offer dedicated account support to facilitate smooth procurement and integration.
