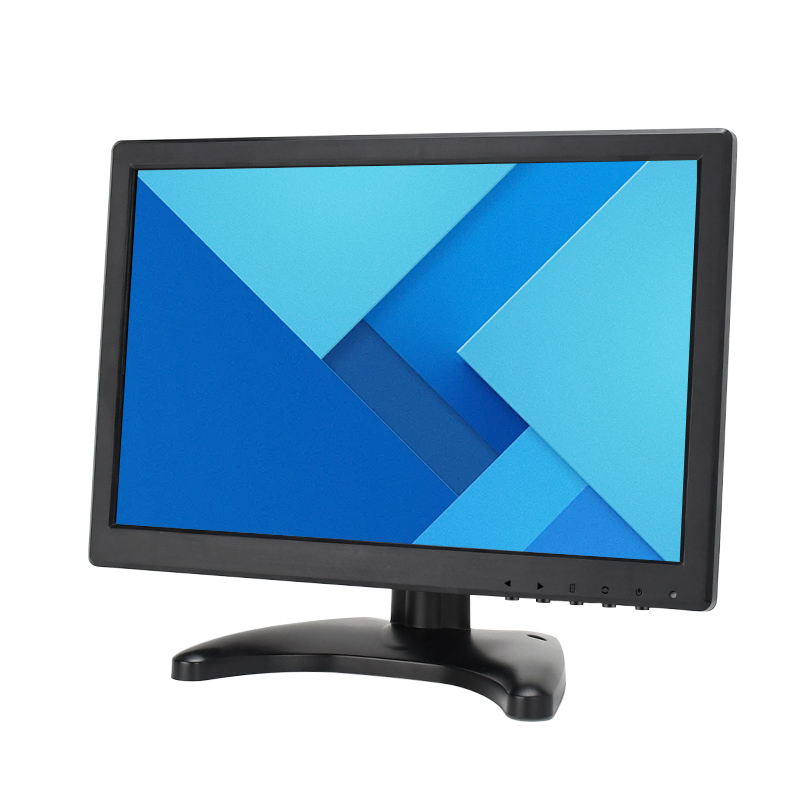

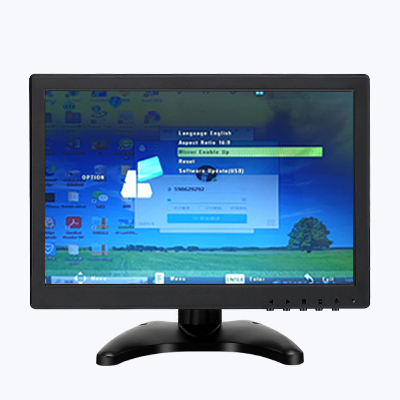

The OHM-1210W is a 12-inch widescreen HDMI LED monitor engineered for professional, industrial and commercial applications. With a 1280×800 resolution and a 16:9 aspect ratio, this compact display delivers clear, crisp visuals — making it ideal for signage, monitoring, control systems, point-of-sale terminals, embedded devices, and more. Built with an LED backlight and robust enclosure, the OHM-1210W is designed for reliability and versatility in diverse environments.
Item No :
OHM-1210WResolution :
1280x800Viewing angle :
160°/160°Brightness :
250-300cd/m2Interface :
HDMI/VGA/AV/BNC/USB readerWorking Temperature :
-10℃~ 60℃
Product Features
|
〖12 inch Widescreen Monitor〗 Oscan 12 inch widescreen monitor with a resolution of 1280x800 is a versatile and reliable solution for multiple industries, including medical, transportation, and manufacturing. The high resolution provides a clear and vivid display, making it ideal for use in applications such as medical imaging, quality control, and data visualization.
|
 |
 |
〖9V-32V Wide Range Power Input〗 Oscan Portable 12 Inch HDMI Monitor with a wide power input range of 9V-32V is a perfect solution for demanding industrial applications that require flexibility and reliability. The wide range allows the monitor to be powered by various sources, from standard AC power to batteries and DC power sources (like a car battery), making it ideal for use in different settings and scenarios. |
|
〖Mirror display feature optional〗 Oscy LCD Monitor with AV HDMI BNC VGA Input is designed with versatile and flexible video settings that include a mirror display feature optional, allowing images to be displayed as mirror images. This innovative feature is ideal for a range of applications, including medical imaging and research, quality control, and user interface design.
|
 |
 |

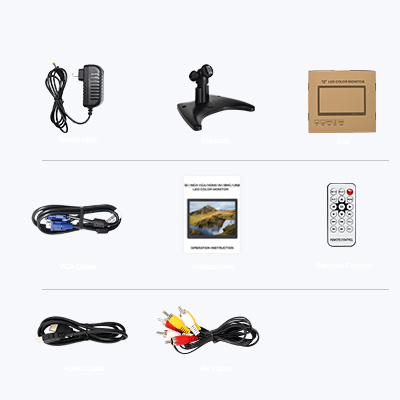

〖Standard Accessories〗 Accessaries standard with VGA cable/ HDMI cable/AV cable and remote control, you can easily connect the Small Monitor HDMI monitor to a wide range of devices, including computers, gaming consoles, and other types of video equipment. This allows for a seamless integration that allows for a quicker and more efficient setup. |
Key specifications at a glance:
Display: 12″ widescreen (16:9), 1280×800 resolution
Brightness: 250–300 cd/m²; Contrast ratio: 500:1
Viewing angle: 160° horizontal / 160° vertical
Connectivity: HDMI / VGA / AV / BNC / USB-reader
Backlight: LED
Operating temperature: –10 °C to 60 °C — suitable for industrial / outdoor / vehicle environments
Power: DC 12V (1–2 A)

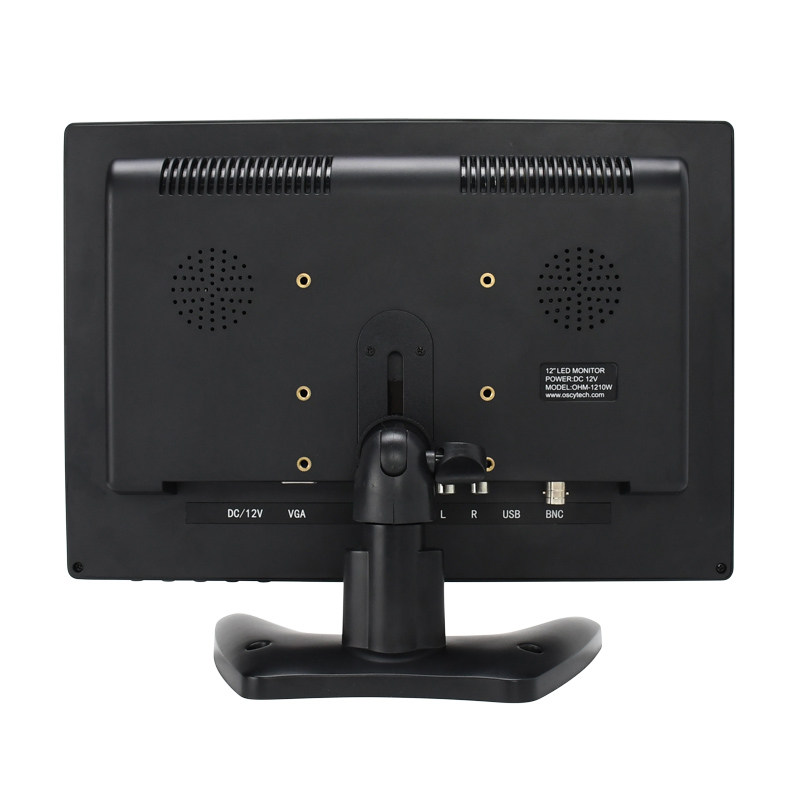

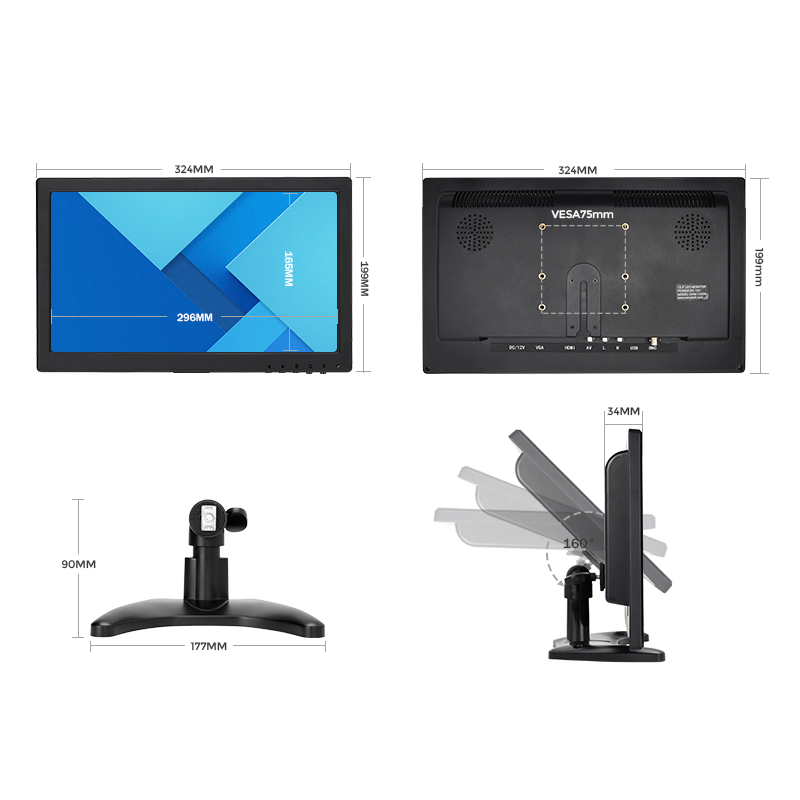

Mounting: VESA 75×75 mm for easy integration into kiosks, control panels or custom enclosures
Built-in speaker & multi-language OSD support for flexible deployment worldwide
This versatile 12″ monitor offers a balanced combination of size, resolution, and input flexibility — making it a practical solution for OEMs, system integrators, or machine builders seeking a compact screen with professional-grade reliability.
Parameters
| OHM-1210W 12 inch HDMI LCD LED Display monitor | |
| Size | 12 inch |
| Ratio | 16:9 |
| Resolution | 1280x800 |
| Brightness | 250-300cd/m2 |
| Contrast ratio | 500:1 |
| Color System | PAL NTSC |
| Viewing Angle | 160°/160° |
| Monitor interface | HDMI/VGA/AV/BNC/USB reader |
| Backlight | LED |
| Working Temperature | -10℃~ 60℃ |
| Speaker | Built in |
| Language | 11 languages |
| Power | DC12V 1-2A |
| VESA mount | 75*75mm |

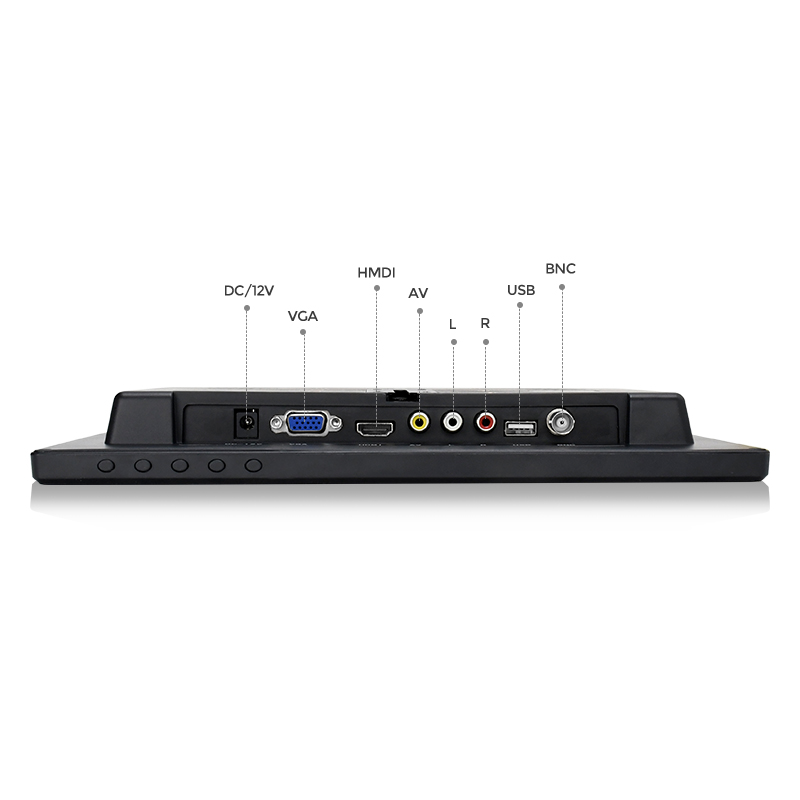

With HDMI, VGA, AV, BNC, and USB-reader ports, the OHM-1210W supports connectivity to a wide range of systems — from PCs and embedded boards to surveillance cameras, broadcast systems, signage media players, and more. This ensures seamless integration into existing infrastructures without complicated adapters.
Thanks to its wide operating temperature range (–10 °C to 60 °C), LED backlight, and sturdy build, the monitor is ready for deployment in demanding conditions — factory floors, vehicle cabins, kiosks, surveillance rooms, or outdoor installations.
The 12″ size makes the monitor a great fit for space-constrained applications — embedded control panels, compact kiosks, mobile vehicles, surveillance consoles. VESA mount support and multiple inputs simplify installation and mounting.
With a 1280×800 widescreen resolution, decent brightness, and LED backlight, the display delivers sharp, clear visuals for video, graphics, UI, or data dashboards. The 16:9 aspect ratio offers a modern widescreen format, ideal for video, digital signage, or modern interface layouts.
As part of Oscy’s industrial monitor portfolio, the OHM-1210W benefits from the company’s deep ODM/OEM experience — meaning buyers can request custom configurations (e.g., alternative power input ranges, custom housings, branding/logo printing, custom mounting or interface modifications) to match their project requirements.
Application Scenarios
Oscan 12 inch widescreen monitor with a resolution of 1280x800 is a versatile and reliable solution for multiple industries, including medical, transportation, and manufacturing. The high resolution provides a clear and vivid display, making it ideal for use in applications such as medical imaging, quality control, and data visualization.
The OHM-1210W excels in a wide variety of professional and industrial contexts. Common use cases include:
Industrial Control & Automation: Embedded in machinery control panels, SCADA systems, manufacturing dashboards, environmental monitoring stations, etc.
Surveillance & Security: CCTV monitor workstations, control rooms, remote monitoring stations, DVR/NVR systems.
Transportation & Vehicle Systems: On-board displays in buses, trains, boats, or special vehicles requiring compact 12″ monitors; vehicle CCTV or monitoring systems.
Point-of-Sale (POS) & Self-Service Kiosks: Retail checkout displays, ticketing machines, self-service terminals, payment kiosks, and interactive counters.
Digital Signage & Information Displays: Advertisement panels, digital signage in shops, public spaces, information terminals in stations or transit hubs.
Embedded & OEM Systems: Integration into custom-built devices, embedded systems, industrial equipment — for machine builders, system integrators or OEM partners.
Because of its compact form factor, broad input support, and rugged design, the OHM-1210W is particularly favored in environments where reliability, space efficiency, and long-term operation are essential.
To build trust with prospective OEM/ODM clients, you may want to include a section covering your company’s credentials, manufacturing capability, and service commitments. Example wording:
Oscy Monitor has more than 14 years’ experience in designing and manufacturing industrial LCD monitors and touch-screens for global clients. We support both standard product lines and fully customized monitor solutions — including custom housings, bespoke interface options, branded packaging and logo imprinting, special power input configurations, and touch-panel options (resistive or capacitive) where required.
All Oscy monitors – including OHM-1210W – are built in compliance with international safety and environment standards such as IEC 62368, CE, RoHS, and CCC — giving buyers confidence for deployment in regulated markets. Rigorous quality control processes ensure each unit meets high reliability and safety requirements.
With multiple production lines, experienced R&D and engineering teams, and a robust supply chain, Oscy can support both small volume custom orders and large-scale deployments — crucial for OEM clients, system integrators, or companies planning roll-outs.
Oscy exports displays to over 100 countries worldwide. With global shipping capability and 24/7 customer support, clients can rely on timely delivery and responsive technical assistance, no matter their location.
We understand that each project has unique requirements. That’s why we offer customization in mounting, interface layout, power input, touch capability, branding (logo / packaging), and even firmware / menu-language localization — perfect for OEMs, integrators, or brands who want displays under their own label.
Q: What power sources can the OHM-1210W use?
A: The OHM-1210W accepts DC 12V power input (1–2 A). Thanks to its design, it can be powered from various sources — including AC adapters, DC power supplies, vehicle batteries, or other DC sources — giving flexibility for deployment in fixed sites, vehicles, or mobile systems.
Q: Can this monitor be used in harsh or industrial environments?
A: Yes. The monitor is rated for operation between –10 °C and 60 °C, and uses LED backlighting and robust build quality — making it suitable for industrial control rooms, manufacturing floors, transportation, outdoor kiosks, or other demanding environments.
Q: Does the monitor support multiple video input types?
A: Absolutely. The OHM-1210W supports HDMI, VGA, AV, BNC, and USB-reader input, which makes it compatible with PCs, embedded systems, cameras, DVRs/NVRs, media players, and other video equipment — reducing integration complexity for system designers.
Q: Can I mount the monitor in a custom enclosure or on a wall/frame?
A: Yes. The monitor supports a standard VESA 75×75 mm mounting interface, making it easy to integrate into custom housings, control panels, vehicle dashboards, kiosks, or wall mounts.
Q: Is customization available for OEM/ODM clients?
A: Yes. As an experienced OEM/ODM supplier, Oscy offers customization in many aspects: power input options, interfaces, housing design, branding (logo/packaging), optional touch panels, and other modifications to meet your specific project requirements.
